Crusher

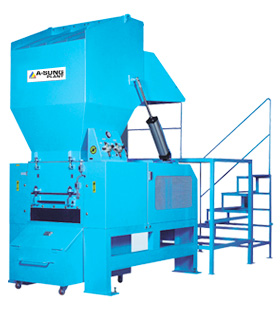

Large Size Crusher
Feature
- It is suitable for crushing relatively large products such as large and beverage boxes, TV and electronic cases, battery boxes, and solids produced during injection work.
- It is capable to crushing relatively voluminous materials such as the boxed of beer beverage, the cases of TV or other electronic products, and battery cases, as well as solids from molding operations.
- Especially it shows excellent performance in crushing soft and hard resins like ABC, PC, POM, PMMA etc.
- Cleaning is easy with only simple handling and large opening diameter of hopper which makes high work efficiency.

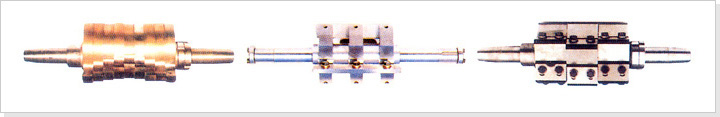

Cutter

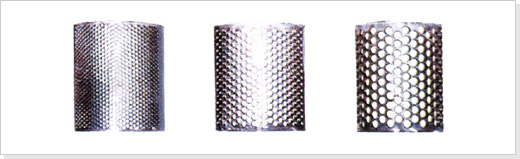

Screen
Specification
Specification
Model |
Power (HP) |
Curshing Capacity (kg/hr) |
Hopper Size (mm) |
Rotated Blade (EA) |
Stationary Blade (EA) |
Dimension (W×L×H) (mm) |
Weight (kg) |
AHC-72 |
37.5Kw(50) |
700×1000 |
500×720 |
9 |
4 |
1500×2200×2400 |
5000 |
AHC-80 |
45Kw(60) |
800×1400 |
800×500 |
9 |
4 |
2250×2660×26200 |
|
AHC-100 |
75Kw(100) |
1000×2000 |
600×1000 |
15(39) |
4 |
2500×2700×3200 |
8000 |
