Tumbler mixer

Feature
  • The color barrel is made of stainless steel and does not rust.
  • There is a lid on both sides of the coloring tins for easy cleaning.
  • One side of the coloring tank is inclined so that the coloring time is shortened and the work is easy.
  • Timer is installed to adjust the coloring time, so you can get accurate color.
  • Brake device makes it easy to insert the material and safe.
  • It is very convenient to receive the material after coloring
zoomin
image1image2

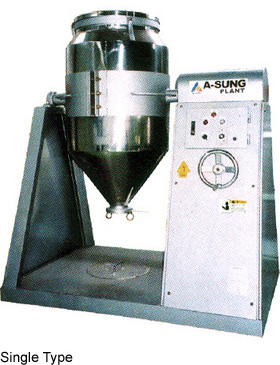

Specification (Single Type)
Model Motor
(HP)		 Reducer
(HP)		 No. of Rev.
(R.P.M)		 Size of Tank
(D×H) (mm)		 Used Capa
(kg/Batch)		 Dimension
(W×L×H)(mm)
ATMS 100 1 2 26 Ø650×1030 1000 850×1360×1730
ATMS 200 2 3 20 Ø900×1320 1400 950×1760×1555
ATMS 300 3 5 18 Ø900×1480 1600 950×1760×2070
ATMS 500 5 7.5 18 Ø1050×1520 1800 1000×1940×2240

Specifications of this product may be changed for quality improvement

Specification (Double Type)
Model Motor
(HP)		 Reducer
(HP)		 No. of Rev.
(R.P.M)		 Size of Tank
(D × H) (mm)		 Used Capa
(kg/Batch)		 Dimension
(W×L×H)(mm)
ATMD 50 1 2 28 Ø500×850 50×2=100 700×1250×1400
ATMD 75 2 3 26 Ø550×1000 75×2=150 850×1760×1500
ATMD 100 2 3 20 Ø650×1030 100×2=200 900×1860×1730
ATMD 200 3 5 18 Ø900×1320 200×2=400 1000×3000×1555

Specifications of this product may be changed for quality improvement
