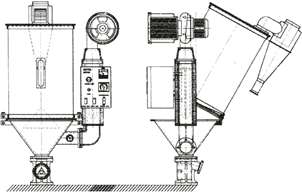

Hopper Dryer
Hopper dryer with a new drying method for high efficiency molding.
Feature
- Compact design with solid beauty and reliability.
- There is a hot air pipe in the center of CON, so the hot air flows through the pallets so that it dries evenly and quickly.
- By designing screen separator and central part, the contact between pallet and hot air is widened to improve thermal efficiency.
- Drying of a wide range of resin pallets from low temperature to high temperature drying resin is possible by simple key operation.
- Inside is a stainless steel product, which has a dryer body and a door, which can be separated by one touch, so cleaning and color replacement are easy.
- Since non-woven fabric is attached, there is no dust blowing of pallet and the factory environment is kept clean.
- Each model is equipped with an overheat prevention meter to prevent losses due to overheating of the heater.
- It is convenient to attach and detach the heater.
- Put the raw materials without accumulating dust or foreign substances inside the CON.
Specification
Specification : Capacity, Voltage, Dimension, Injection M/C
Model |
Capacity |
Voltage(kw) |
Dimension (Ø × h)(mm) |
Injection Machine (Ton) |
Heater |
Motor |
AHD-15 |
15 |
3 |
0.14 |
Ø280 × 740 + (150) |
|
AHD-25 |
25 |
3 |
0.18 |
Ø345 × 930 + (160) |
50 ~ 100 |
AHD-50 |
50 |
6 |
0.18 |
Ø436 × 1060 + (160) |
100 ~ 150 |
AHD-75 |
75 |
6 |
0.18 |
Ø535 × 1100 + (160) |
150 ~ 250 |
AHD-100 |
100 |
8 |
0.37 |
Ø550 × 1200 + (250) |
250 ~ 350 |
AHD-150 |
150 |
8 |
0.37 |
Ø550 × 1500 + (250) |
350 ~ 450 |
AHD-200 |
200 |
12 |
0.5 |
Ø700 × 1550 + (250) |
150 ~ 550 |
AHD-250 |
250 |
12 |
0.5 |
Ø776 × 1550 + (250) |
650 ~ 850 |
AHD-300 |
300 |
16 |
0.5 |
Ø776 × 1800 + (250) |
850 ~ 1800 |
AHD-400 |
400 |
16 |
0.75 |
Ø870 × 1900 + (250) |
1300 up |
AHD-500 |
500 |
18 |
0.75 |
Ø970 × 2000 + (250) |
1800 up |
AHD-1000 |
1000 |
24 |
1.5 |
Ø1200 × 2574 + (250) |
1800 up |
- The dimensions in ( ) are the top of the dust collector above the hopper.
- Specifications of this product may change due to quality improvement.
- Products other than the standard specifications are made to order.
