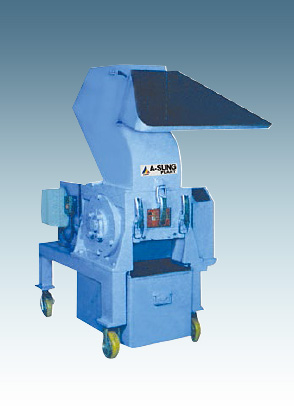

High Speed Crusher

Feature
  • The body of the hopper is thick and double damapa is installed, so the sound insulation effect is excellent by high blocking against noise, vibration and oscillation.
  • Rotary blades are excellent for grinding PCs, Ntlon (66 #), glass-based resins and other solid materials.
  • A large amount of grinding can be obtained with little power, it is compact, convenient to move, occupies a small installation area, and the blade of special material has less wear.
  • It is easy to clean with one operation, and the Hopper diameter is large, so the amount of work and the work efficiency are higher compared to the same time.
zoomin

Specification
Model Power
(HP)		 Crushing
Capacity
(kg/hr)		 Hopper
Size
(mm)		 Rotated
Blade
(EA)		 Stationary
Blade
(EA)		 Dimension
(WxLxH)
(mm)		 Weight
(kg)
AHC-21 3.75Kw(5) 100x150 170x210 3 2 630x800x1300 420
AHC-28 5.5Kw(7.5) 150x250 250x280 6(12) 2 720x900x1530 600
AHC-35 7.5Kw(10) 200x300 250x350 6(15) 2 830x1050x1600 950
AHC-42 11Kw(15) 250x400 250x420 9(18) 4 930x1160x1950 1550
AHC-49 15Kw(20) 300x500 300x490 9 4 1150x1500x2100 2150
AHC-54 18.5Kw(25) 400x600 540x370 6(12) 4 720x900x1530
AHC-63 22Kw(30) 500x600 250x630 9 4 1260x1800x2330 320000
