Oil Temperature Controller

Oil Temperature Controller

Feature
  • This is a precise temperature control system (P.I.D.) of proportional control by function.
  • Abnormal part display function and alarm system are attached
zoomin

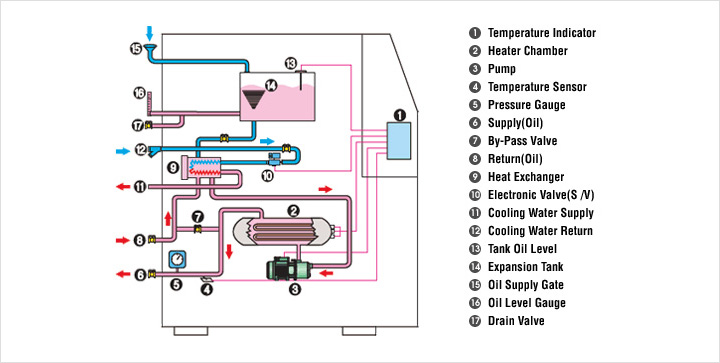

Structure

Structure

Standard Specification
Oil Type (200℃)
Model ASO-20LH ASO-40LH ASO-60LH
Media Oil (K-2120#)
Pump
60/50Hz		 Motor kW(HP) 0.33(0.45) 0.75(1) 1.1(1.5)
Heater kW 4 12 17
Media In/Out (mm) 20A 25A 25A
Coolant In/Out (mm) 15A 15A 15A
Dimension L×W×H mm 745×400×600 745×400×600 750×500×770
Model ASO-80LH ASO-100LH
Media Oil (K-2120#)
Pump
60/50Hz		 Motor kW(HP) 1.5(2) 1.5(2)
Heater kW 22 28
Media In/Out (mm) 32A 32A
Coolant In/Out (mm) 15A 15A
Dimension L×W×H mm 1500×500×1700 1500×500×1700
Oil Type (300℃)
Model ASO-30LHH ASO-60LHH ASO-100LHH ASO-150LHH
Media Oil (K-2120#)
Pump
60/50Hz		 Motor kW(HP) 1.1(1.5) 2.2(3) 3(4) 4(5)
Heater kW 13 25 42 63
Media In/Out (mm) 20A 25A 32A 32A
Coolant In/Out (mm) 15A 15A 15A 15A
Dimension L×W×H mm 825×430×780 750×450×770 1000×800×1200 1500×800×1700
  • This product is subject to change without notice due to technical development.
  • In addition to the above products, we also manufacture products with special specifications.
