Dryer

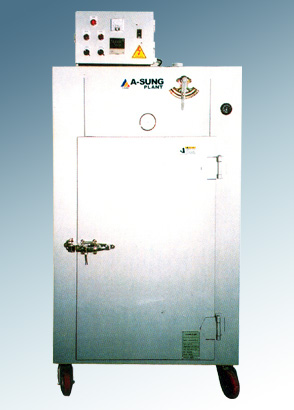

Oven Dryer
Feature
- It is designed to minimize the variation of internal temperature by maximizing air convection by adopting powerful blower.
- Adopting the electronic method, it is semi-permanent and minimizes the error of temperature and the temperature distribution of each layer is uniform because the drying hot air vortexes inside at a constant temperature at all times.
- Long life and easy maintenance by making up for the heater weak points.
- The air volume is adjustable and the filter is attached to prevent the mixing of air dust and foreign substances in the air, eliminating the cause of black spot defects when forming the product.
Standard specification
Specification : Motor, Heater, Floors, CAPA, Dimension
Model |
Motor (kw) |
Heater (kw) |
Floors |
CAPA (kg) |
Dimension |
AOD - 50 |
0.2 |
6 |
6 |
50 |
800 × 750 × 1200 |
AOD - 75 |
0.2 |
7.5 |
8 |
75 |
900 × 800 × 1500 |
AOD - 100 |
0.4 |
9 |
10 |
100 |
900 × 800 × 1800 |
AOD - 200 |
0.4 |
18 |
10 × 2 |
200 |
1800 × 800 × 1800 |
AOD - 300 |
0.75 |
22 |
15 × 2 |
300 |
1800 × 800 × 2100 |
Products other than the standard specifications are made by order.
