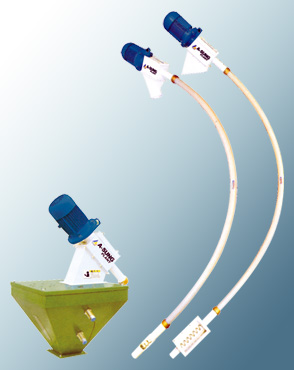

Spring Feeder
Spring Feeder
It achieves innovative product transfer with ultra-fine powder and no deformation.
Feature
- Because it is a closed type, it does not cause dust exposure and clogging of raw materials.
- Since the bag filter is not used, there is no problem of filter clogging.
- Mixtures with different specific gravity are not separated.
- The mixture can get a mixing effect.
- The installation cost is low.
- Easy to disassemble and assemble.

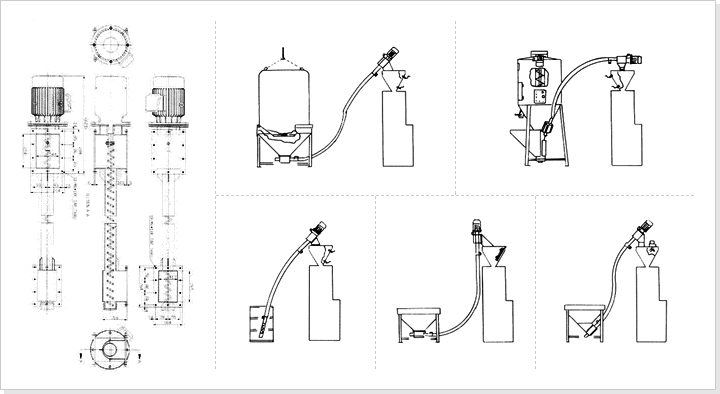

- Left, right, up and down angle can be adjusted (angle adjustable ball mount)
Specification
Specification
Model |
Capacity (kg/hr) |
Tube Size (mm) |
Curve Radius (mm) |
ASF - 4 |
90~180 |
Ø48.6 (40A) |
1000 |
ASF - 5 |
300~800 |
Ø60.5 (50A) |
1400 |
ASF - 6 |
800~1300 |
Ø76.3 (65A) |
1600 |
ASF - 8 |
1500~2500 |
Ø89.1 (80A) |
2000 |
ASF - 10 |
4000~5000 |
Ø114 (100A) |
2500 |
ASF - 12 |
5000~6500 |
Ø139.8 (125A) |
3000 |
- The hourly feed capacity is the capacity when using a six-pole motor, and a four-pole motor can be used to increase the feed rate.
- Bulk Density is based on 0.5.
