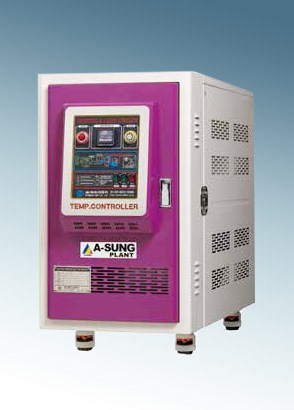

Water Temperature Controller

Feature
  • This is a precise temperature control system (P.I.D.) of proportional control by function.
  • Abnormal part display function and alarm system are attached.
  • High precision temperature control is available (deviation ΔT ± 0.5 ℃ ~ 0.8 ℃)
  • Compared with the compact size, it provides rich discharge volume and discharge pressure.
zoomin

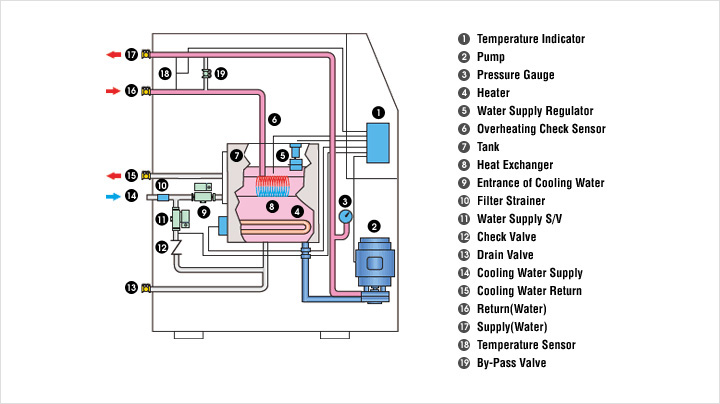

Structure

Structure

Standard Specification
Hot Water Type (90℃)
Model AS-10LW AS-20LW AS-40LW
Media Water & Oil
Pump
60/50Hz		 Heater kW(HP) 0.25(1/3) 0.37(1/2) 0.55(0.75)
Flow rate ℓ/min 10 20 40
Heater kW 2 3 5
Media In/Out (mm) 15A 20A 25A
Coolant In/Out (mm) 6A 15A 15A
Dimension L×W×H mm 500×350×500 570×400×700 670×420×570
Model AS-60LW AS-80LW AS-100LW
Media Water & Oil
Pump
60/50Hz		 Heater kW(HP) 0.75(1) 1.25(1.67) 1.25(1.67)
Flow rate ℓ/min 60 80 100
Heater kW 8 10 13
Media In/Out (mm) 25A 32A 32A
Coolant In/Out (mm) 15A 15A 15A
Dimension L×W×H mm 700×400×700 800×500×750 800×500×750
Hot Water Type & Oil Type (140℃)
Model AS-20LW/20LO AS-40LW/40LO AS-60LW/60LO
Media Water & Oil
Pump
60/50Hz		 Motor kW(HP) 0.33(0.45) 0.75(1) 1.1(1.5)
Flow rate ℓ/min 20 40 60
Heater kW 4 8 12
Media In/Out (mm) 20A 25A 25A
Coolant In/Out (mm) 15A 15A 15A
Dimension L×W×H mm 570×400×700 570×400×700 700×400×700
Model AS-80LW/80LO AS-100LW/100LO
Media Water & Oil
Pump
60/50Hz		 Motor kW(HP) 1.5(2) 1.5(2)
Flow rate ℓ/min 80 100
Heater kW 16 20
Media In/Out (mm) 32A 32A
Coolant In/Out (mm) 15A 15A
Dimension L×W×H mm 800×500×750 800×500×750
  • This product is subject to change without notice due to technical development.
  • In addition to the above products, we also manufacture products with special specifications.
