Chiller
Air Cooler Type Chiller Series
Feature
-

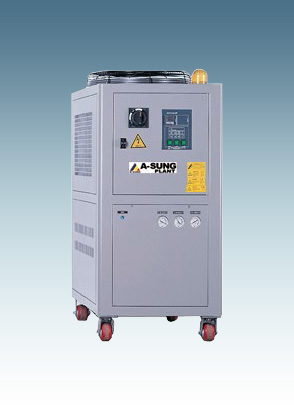

Integral type
- It is compact type that can be installed in small space and can be moved easily by wheels.
- The lamp is installed in the driving area so that it can easily identify whether or not the operation is possible. In case of abnormal operation, the red lamp is turned on and the emergency light is turned on at the upper part.
- Achieved high productivity, high quality and stability in plastic injection molding and accurate temperature control reproducibility.
- Maximized high efficiency cooling capacity, excellent durability and various capacity control have been established.
-
Detachable type
- It is a revolutionary cooling system that completely solves the uncomfortable working conditions caused by the rise of the workplace temperature in the summer.
- It is used when the production output is reduced due to unreasonable workplace conditions.
- It is used when workshop and production conditions are not suitable due to foreign matter.
- It is compact and can be installed anywhere.
- Cooler operation status display, malfunction diagnosis function, alarm function and emergency lighting operation are easy.
- Separate outdoor unit.

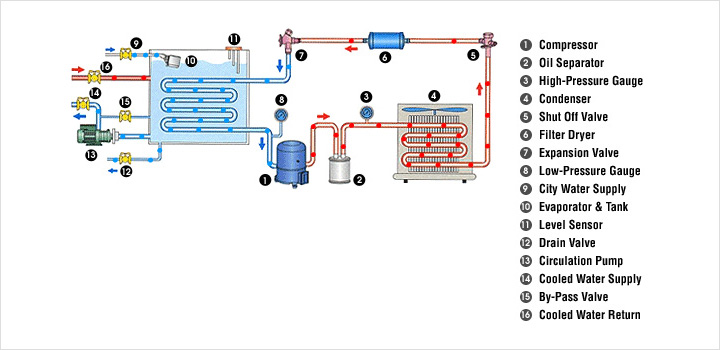

Diagram
Standard Specification
Model |
Output Compressor |
Circulation Pump Capacity |
Max. Vomiting |
Tank Capacity |
Cooling Capacity |
Dimension |
kW(HP) |
kW(HP) |
ℓ/min |
ℓ |
kcal/hr |
L(mm) W(mm) H(mm) |
AS-00.5A |
0.375(1/2)
| 0.09(0.12)
| 5~6
| 12.5
| 1400~1500
| 550 450 700
|
AS-01A |
0.75(1)
| 0.35(0.45)
| 10~13
| 20
| 2800~3000
| 715 500 900
|
AS-02A |
1.5(2)
| 0.69(0.92)
| 20~24
| 39
| 5600~6000
| 800 700 1000
|
AS-03A |
2.2(3)
| 0.69(0.92)
| 30~36
| 52
| 8400~9000
| 900 750 1150
|
AS-05A |
3.75(5)
| 0.69(0.92)
| 50~60
| 100
| 14000~15000
| 1000 800 1200
|
AS-07.5A |
5.5(7.5)
| 1.25(1.67)
| 70~80
| 130
| 21000~22500
| 1250 870 1300
|
AS-010A |
7.5(10)
| 1.25(1.67)
| 100~120
| 150
| 28000~30000
| 1430 850 1400
|
AS-015A |
11.25(15)
| 1.58(2.12)
| 150~160
| 240
| 42000~45000
| 1800 950 1600
|
AS-020A |
15(20)
| 1.9(2.5)
| 200~220
| 300
| 56000~60000
| 2150 1050 1780
|
AS-030A |
22.5(30)
| 3(4.02)
| 300~380
| 470
| 84000~90000
| 2300 1050 1780
|
AS-040A |
30(40)
| 4(5.4)
| 400~440
| 600
| 112000~120000
| 2500 1200 1800
|
AS-050A |
37.5(50)
| 5.5(7.5)
| 500~600
| 750
| 140000~150000
| 3200 1200 1960
|
Specifications of this product may change due to quality improvement.
